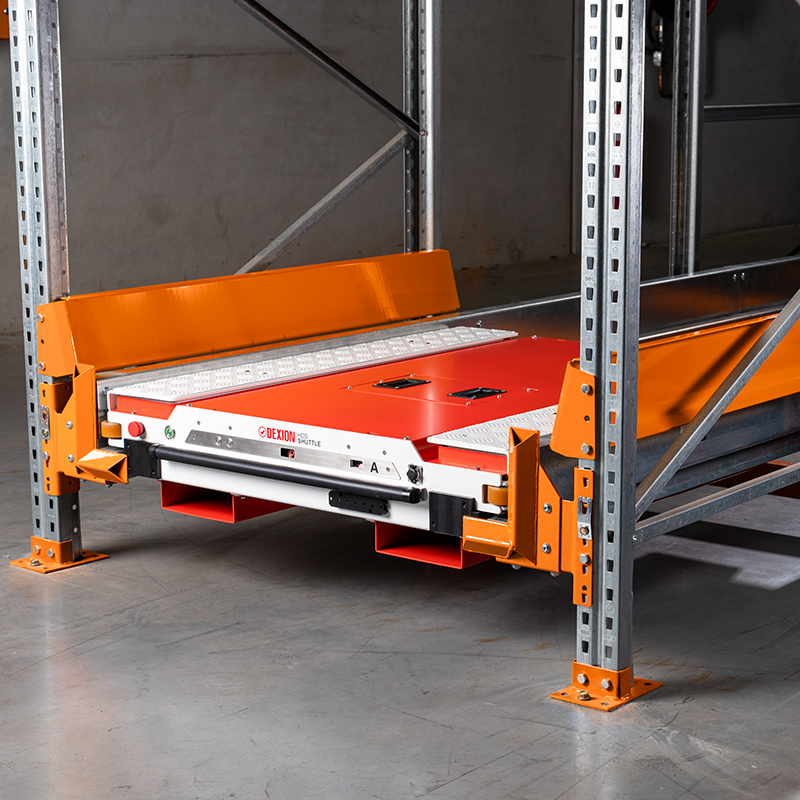

Dexion HDS Shuttle
The Dexion High Density Storage (HDS) Shuttle offers high density pallet storage without the use of forklifts.
The shuttle unit travels on support rails, transporting pallets within the system by retrieving and depositing pallets, controlled by the user via remote control. The HDS Shuttle incorporates various features to ensure safe handling, high reliability and low energy consumption.
This solution makes the most use of limited space and provides high density storage for both highly active or static stocks with low SKUs. The system is scalable according to the warehouse operations, throughput and goods volume.
• High density storage solution that maximises warehouse space
• Makes unloading and loading more efficient with automatic sort and retrieve
• Provides a safe environment to workers and goods as compared to other high density storage solutions, by eliminating the need for forklifts to drive into the rack
• The shuttle is controlled via a simple and easy to use RF Remote Control
• Smart safety sensors ensure the shuttle avoids any obstructions in the lane
• Long lasting and fast charging lithium ion battery
• Fully compatible with Dexion racking systems
• Excellent for FIFO or LIFO operations or a combination of both
• Designed and manufactured by Dexion ensuring spare parts are readily available while being simple to service and maintain
• Other features include a fork lift magnets, fork tyne pockets and location beakers
Number of wheels
4 or 8
Unload Time
4 sec
Loaded Speed
50m / min
Unloaded Speed
84m / min
Lift Capacity
4 Wheel: 1,500kg
8 Wheel: 2,000kg
Use Duration
8 hours
Battery Type
Lithium
Recharge Time
5 hours
Remote Type
RF
Remote Battery
Re-chargeable Lithium
Operational Temperature
Cold Room -35°C to 50°C
Ambient 0°C to +50°C
Safety Features
Ground stops
Back stops
Emergency buttonAdd-ons:
Collision sensors
Tyne pockets
Safety carriage
Electromagnetic locking system
Anti-tilting alarm
Drop alarmStandard Features
Single load
Single unload
Continuous load
Continuous unload
Battery meterAdd-ons:
Reshuffling
Shuttle unit locator
Shuttle Performance DashboardPallet Racking System
Speedlock MK8
Shuttle Dimensions (LxWxH)
1300 x 960 x 175 mm
